About the workshop

Practical tools and workflows for developing and maintaining QSP models

I. Heta language. heta-compiler

II. Modularity in QSP

III. HetaSimulator.jl

Heta project

https://hetalang.github.io

• Documentation
• Tutorials
• GitHub repositories
• Examples

What we will need today

• Text editor (VSCode/Sublime/Notepad)
  + console
• heta-compiler (command line tool)

• heta-online (optional):
  https://heta-online.insysbio.com

Challenges in QSP modeling

• Editable models — models must remain readable and revisable

• Structure — large models need decomposition into reusable parts

• Tool interoperability — no single environment covers the full workflow

• Versioned teamwork — projects need text-based collaboration and diffs

Part I

Heta language. heta-compiler

ODE-based vs process-based modeling. Heta syntax. heta-compiler. Export formats. QSP project structure.

Example 1a: ODE-based

[ODE]
A_amt ~ -r1;
B_amt ~ r1 - r2;
C_amt ~ r2;
[rules]
A = A_amt / c1;
B = B_amt / c1;
C = C_amt / c1;
r1 = k1 * A * c1;
r2 = k2 * B * c1;
[parameters]
c1 = 5.5;
k1 = 0.1;
k2 = 0.05;
[initials]
A = 2.0;
B = 0.0;
C = 0.0;

Example 1b: ODE-based

[ODE]
A_amt ~ -r1 - r3;     ⟵
B_amt ~ r1 - r2;
C_amt ~ r2;
D_amt ~ r3;           ⟵
[rules]
A = A_amt / c1;
B = B_amt / c1;
C = C_amt / c1;
D = D_amt / c1;       ⟵
r1 = k1 * A * c1;
r2 = k2 * B * c1;
r3 = k3 * A * c1;     ⟵
[parameters]
c1 = 5.5;
k1 = 0.1;
k2 = 0.05;
k3 = 0.02;            ⟵
[initials]
A = 2.0;
B = 0.0;
C = 0.0;
D = 0.0;              ⟵

Example 1a: process-based

c1 @Compartment .= 5.5;
A @Species { compartment: c1 } .= 2.0;
B @Species { compartment: c1 } .= 0.0;
C @Species { compartment: c1 } .= 0.0;

r1 @Reaction { actors: A => B } := k1 * A * c1;
r2 @Reaction { actors: B => C } := k2 * B * c1;

k1 @Const = 0.1;
k2 @Const = 0.05;

Example 1b: process-based

c1 @Compartment .= 5.5;
A @Species { compartment: c1 } .= 2.0;
B @Species { compartment: c1 } .= 0.0;
C @Species { compartment: c1 } .= 0.0;

r1 @Reaction { actors: A => B } := k1 * A * c1;
r2 @Reaction { actors: B => C } := k2 * B * c1;

k1 @Const = 0.1;
k2 @Const = 0.05;

// new part
D @Species { compartment: c1 } .= 0.0;
r3 @Reaction { actors: A => D } := k3 * A * c1;
k3 @Const = 0.02;

Why process-based is better?

• Readability — more intuitive and closer to the way we think about biology

• Flexibility — easier to extend and update, more freedom in syntax

• Modularity — easier to decompose into reusable parts, less global changes

The difference becomes important when the model grows.

Process-based modeling

• Abstract layer. Process-based languages do not replace ODE models.
  Instead, they provide a higher-level way to describe the system.
  The compiler automatically generates the system of differential equations.

• Other process-based systems:
  • SBML
  • CellML
  • Antimony/Tellurium
  • SimBiology
  • CellDesigner, COPASI, etc.

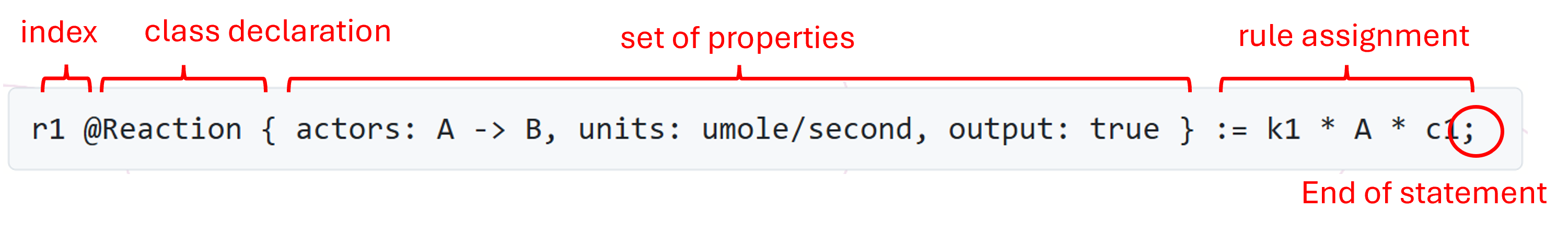

Syntax: Component Declaration

Multiple versions of the same code

Version 1:

r1 @Reaction { actors: A => B, units: umole/second } := k1 * A * c1;

Version 2:

r1 @Reaction { actors: A => B };  // insert
r1 { units: umole/second };       // update
r1 := k1 * A * c1;                // update

Syntax: Base Classes

Syntax: Switcher Classes

To create events triggered at specific time points:

sw1 @TimeSwitcher { start: 10, period: 6 };

To create events triggered when an expression crosses zero from negative to positive:

sw2 @CSwitcher { trigger: 5 - x };

Syntax: Assignments

Example 1с: use events

c1 @Compartment .= 5.5;
A @Species { compartment: c1 } .= 2.0;
B @Species { compartment: c1 } .= 0.0;
C @Species { compartment: c1 } .= 0.0;

r1 @Reaction { actors: A => B } := k1 * A * c1;
r2 @Reaction { actors: B => C } := k2 * B * c1;

k1 @Const = 0.1;
k2 @Const = 0.05;

// new part
D @Species { compartment: c1 } .= 0.0;
r3 @Reaction { actors: A => D } := k3 * A * c1;
k3 @Const = 0.02;

// event
sw1 @TimeSwitcher { start: 12, period: 24 };
dose @Const = 1.5;
A [sw1]= A + dose / c1;

heta-compiler

1. Reads Heta model files
2. Checks for errors
3. Builds internal structure
4. Exports to various formats

Task 1: Compile first model in heta-compiler

Compile the model we just created and generate simulation-ready outputs:
SBML, DBSolve, Dot.

Steps

1. Create a directory task-1 and open the directory with VSCode.

2. Create a file index.heta with the code from the previous example.

3. Open the terminal Ctrl + ` and run the command
   heta build --export=SBML,DBSolve,Dot

4. Check the generated files in the dist directory.
   (Graphviz plugin is required for Dot file)

Task 1: Compile the same model in heta-online

Steps

1. Open https://heta-online.insysbio.com in your browser.
2. Copy the code from the previous example and paste it into the editor.
3. Click the "Compile" button and check the generated outputs.

heta-compiler commands

See documentation for additional options and export formats

Modeling platform example

qsp-project/
  |-- src/            ⟵ model source
  |  |-- index.heta
  |  |-- module1.heta
  |  |-- module2.xml
  |-- dist/           ⟵ compiled outputs (if required)
  |-- data/           ⟵ experimental data
  |-- scenarios/      ⟵ conditions and simulation scenarios
  |-- docs/           ⟵ documentation, reports
  |-- results/        ⟵ outputs, logs
  |-- julia/          ⟵ Julia code
  |-- R/              ⟵ R code
  |-- platform.yml     ⟵ top-level metadata, configurations
  |-- README.txt      ⟵ human-readable overview

Project structures may vary, but they should follow clear conventions so that all team members can easily understand and navigate them.

Project structure tips (not for Heta only)

Good practices

Store everything in a single directory - repository
Keep the repository clean
Separate model code, data, documentation, and scripts
Use clear naming conventions for files and directories

Bad practices

Store important files outside the repository
Mix code, data, and models in the same file
Mix source and generated files
Store multiple versioned copies of the same files: model_2026-04-07.heta.

How to create a new Heta project

heta init

is a command that creates a new project with a minimal structure and example files.

platform.yml - project configuration

{
  builderVersion: ^0.10.0,
  id: template,
  notes: platform notes,
  version: v0.1.0,
  license: UNLICENSED,
  options: {},
  importModule: {
    type: heta,
    source: src/index.heta
  },
  export: [
    { format: JSON, omit: [], useUnitsExpr: false },
    #{ format: YAML, omit: [], useUnitsExpr: false },
    #{ format: DBSolve, powTransform: keep, version: 26 },
    #{ format: SLV, eventsOff: false, powTransform: keep, version: 26 },
    #{ format: SBML, version: L2V4 },
    #{ format: Simbio },
    #{ format: Mrgsolve },
    #{ format: Table, omitRows: 0, omit: [], bookType: csv, splitByClass: false },
    #{ format: XLSX, omitRows: 0, omit: [], splitByClass: true },
    #{ format: Julia },
    #{ format: Matlab },
    #{ format: Dot },
    #{ format: Summary }
  ]
}

Part II

Modularity in QSP

Decomposition. Multiple model formats. Table format. SBML integration.

The problem of monolithic models

• Difficult to understand
• Difficult to modify
• Difficult to reuse

Decomposing a large system into smaller, manageable parts is a common engineering practice.

Including modules

Example project structure:

qsp-project/
  |-- src/
     |-- index.heta
     |-- qsp-units.heta
     |-- module1.heta
     |-- module2.heta

index.heta:

/* Main module */
include module1.heta;
include module2.heta;
include qsp-units.heta;
...

Task 2: Split model

// cell-dynamics
blood @Compartment .= 5.3;
cell_count @Species { compartment: blood } .= 1;
v_prol @Reaction { actors: => cell_count };
v_prol := k_prol * cell_count;

k_prol @Const = 1e-3;

// intracellular-processes
cell_vol @Compartment := 1e-6 * cell_count;
m1 @Species { compartment: cell_vol } .= 0;
m2 @Species { compartment: cell_vol } .= 0;
m3 @Species { compartment: blood } .= 0;

vsyn_m1 @Reaction { actors: => m1 };
vsyn_m1 := ksyn * cell_vol;
v_m1_m2 @Reaction { actors: m1 => m2 };
v_m1_m2 := kcat_m1 * m1 / (Km1 + m1) * cell_vol;
vtr_m2 @Reaction { actors: m2 => m3 };
vtr_m2 := P * S * m2;

ksyn @Const = 1e-2;
kcat_m1 @Const = 1e-1;
Km1 @Const = 12;
P @Const = 1.2;
S @Const = 1e-8;

Task 2: Split model

Split the model into modules and verify that it still works

Steps

1. Create a directory task-2 and open the directory with VSCode.
2. Create project structure with heta init.
3. Replace the content of src/index.heta with the code from the previous slide.
4. Review platform.yml uncomment the desired export formats: SBML, Dot.
5. Build the model with heta build.
6. Split the code into three files: cell-dynamics.heta, intracellular-processes.heta, index.heta.
7. Build to check that everything works after the split.

How to decompose to modules?

• Ad-hoc split: old-part.heta | new-part.heta | newest-part.heta | third-party.heta

• By component types: species.heta | reactions.heta | constants.heta

• By biological subsystems: pk.heta | tumor.heta | immune.heta | drug-action.heta

There is no single correct structure. However, in practice, organizing modules by subsystems, usually works best.

Demo 1: FAAH inhibitor

Modular decomposition

https://doi.org/10.1038/psp.2013.72
https://github.com/insysbio/faah-inhibitor

Tables as modules (CSV / Excel)

Heta code is not the only way to create modules.

/* index.heta */

include mod2.csv type table;                  // from CSV
include mod3.xlsx type table with {sheet: 0}; // from XLSX (first sheet)
include mod3.xlsx type table with {sheet: 1}; // from XLSX (second sheet)

Example of Heta table format

reactions.csv - Heta code:

r1 @Reaction { actors: A => B } := k1 * A * comp1;
r2 @Reaction { actors: B => C } := k2 * B * comp1;
//r3 @Reaction { actors: C => A } := k3 * C * comp1;

reactions.csv - Table format:

Task 3: Build model from tables

Modify an existing table-based model.

Steps

1. Create a directory task-3
2. Init project with heta init
   (? Select file types: heta+xlsx).
3. Download table-based model from https://hetalang.github.io/qspc2026/table.xlsx to /src/table.xlsx.
4. Build the model with
   heta build.

Task 3: Build model from tables

Modify an existing table-based model.

Steps

5. Open the file src/table.xlsx and modify the model to add a new reaction.
6. Build the model again and check that the changes are reflected in the outputs.

Table format: pros and cons

Pros:

• Easy to create and edit in Excel if you are not comfortable with code
• Does not require learning Heta syntax
• Provides a structured, tabular view of model components

Cons:

• Limited expressiveness compared to Heta code
• Harder to navigate in large models
• Difficult to track changes and compare versions
• Less flexible for modular decomposition (often leads to splitting by component types)

Table format is convenient, but not always scalable

Other module types

include json_file.json type json;
include yaml_file.yml type yaml;

include sbml_file.xml type sbml;   // !!!

heta-compiler can integrate SBML models as modules.

Demo 2: Insulin signaling in diabetes type 2

SBML integration

https://doi.org/10.1074/jbc.M112.432062
https://biomodels.org/BIOMD0000000448
https://github.com/insysbio/insulin-signaling-t2d

Heta modules: summary

• Split large models into manageable parts
• Support reuse and model extension
• Combine multiple formats: Heta code, tables, JSON, YAML
• Integrate external models (e.g. SBML)

/* index.heta */
include mod1.heta;                  // Heta
include mod2.csv type table;        // Table
include mod3.xlsx type table with {sheet: 0, omitRows: 0};
include mod3.xlsx type table with {sheet: 1, omitRows: 0};
include mod4.json type json;        // JSON
include mod5.yml type yaml;         // YAML
include mod6.xml type sbml;         // SBML

Part III

HetaSimulator.jl

Intro. Simulations. Scenarios. Visualization. Workflow.

HetaSimulator.jl intro

• Julia simulation package for Heta platforms
• Runs models directly without conversion
• Easy to visualize results
• Can be extended for advanced analysis

A natural and integrated way to work with Heta models.

Demo 3: example 1c

#= julia/run.jl =#
using HetaSimulator, Plots

# Load the model
platform = load_platform(".")
model = models(platform)[:nameless] # get default model

# Define a simulation scenario and run
scn1 = Scenario(
    model, (0., 100.);
    observables = [:A, :B]
)
results = sim(scn1)

# plot results
plot(results)

HetaSimulator.jl: capabilities

• Flexible ODE solvers (DiffEq.jl)
• Visualization and plotting
• Simulation scenarios inline or from files
• Experimental data integration, parameter estimation, identifiability analysis
• Monte-Carlo simulations, Virtual Populations, sensitivity analysis
• High-performance computing with SLURM integration

Heta workflow: from model to simulation

1. heta init → create project
2. Edit platform.yml → configure build
3. Edit index.heta / modules → define model
4. load_platform(".") → check model in HetaSimulator
5. Run simulations → analyze results
6. ↺ Repeat steps 3–5
7. Export model → share or reuse

The idea behind Heta project

We put the model at the center.

Treat models as code: editable, versioned, modular.

Engineering principles: structure, separation, reproducibility.
